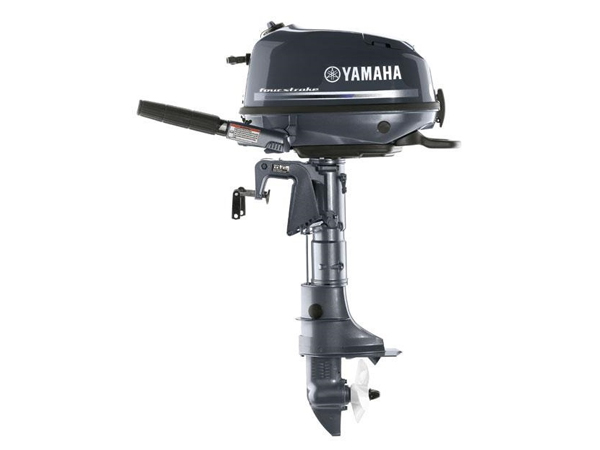

2017 YAMAHA F6 F6LMHA OUTBOARD MOTOR

2017 Yamaha F6 F6LMHA Outboard Motor

For those who want power, performance and portability

The sun just broke the horizon, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up or hopping to the cuddy on a tender. Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from the F20, to the F2.5, including the redesigned F8 with 7.5 percent more displacement, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.

2017 Yamaha F6 F6LMHA Outboard Motor

Streamlined Intake Manifold

Labyrinth Exhaust

Long Span Mounting System

Four Stroke Engine Design

Oil Separator

Streamlined Gearcase

Overhead Valve (OHV) Design

2-Valves Per Cylinder

Precise Carburetor Setting

Built-in Auxiliary Priming Pump

Dynamically Balanced Crankshaft

5-Step Anti-Corrosion Paint Process

Stainless Steel Driveshaft, Prop Shaft, Shift Shaft and Steering Tube

CDI Microcomputer

Sacrificial Anodes

Pressurized Lubrication

Built-in Fuel Filter

2017 Yamaha F6 F6LMHA Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name F6

Trim Name F6LMHA

Generic Type (Primary) Four Stroke

Engine

Engine Type One-Cylinder

Engine Power 6 hp @ 5000 rpm

Alternator (Output): 6 Amp (Optional: Requires Charging Kit

Displacement 8.5 ci (139 cc)

Gear Ratio (Primary) (27:13) 2.08:1

Lubrication Wet sump

Fuel Type Induction: OHV

Ignition System: CDI

Oil Type (Recommended): Yamalube® 4M (See owner’s manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)

Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external)

Capacities

Oil capacity .6L (.63 qt)

Spark Plug

Spark Plug CR6HSB-000-000

Range

Note Full Throttle RPM Range: 4500-5500

Dimensions

Length Shaft: L=20″

Bore 2.44 in. (62 mm)

Stroke 2.44 in. (1.81 mm)

Weights

Weight Spec: 5 lbs

Dry Weight F6LMHA = 28kg (62 lbs)

Features

Compression Ratio 8.9:1

Note Ethanol Blend Limit: 10% Maximum

Note Gear Shift: Forward, Neutral, Reverse

Features C.A.R.B. Rating: 3 Star

Steering Angle (Maximun): 90° from center, either direction

Exhaust Above Propeller

Starter Manual

Cooling Water/Thermostatic Control

Intake Design Carburetor

Features Degree of Tilt: 69° | Degree of Trim: 5 positions

Note Mounting Centers: 28.6″

Warranty

Warranty 3-year Pleasure, 3-year Government, 1-year Commercial
